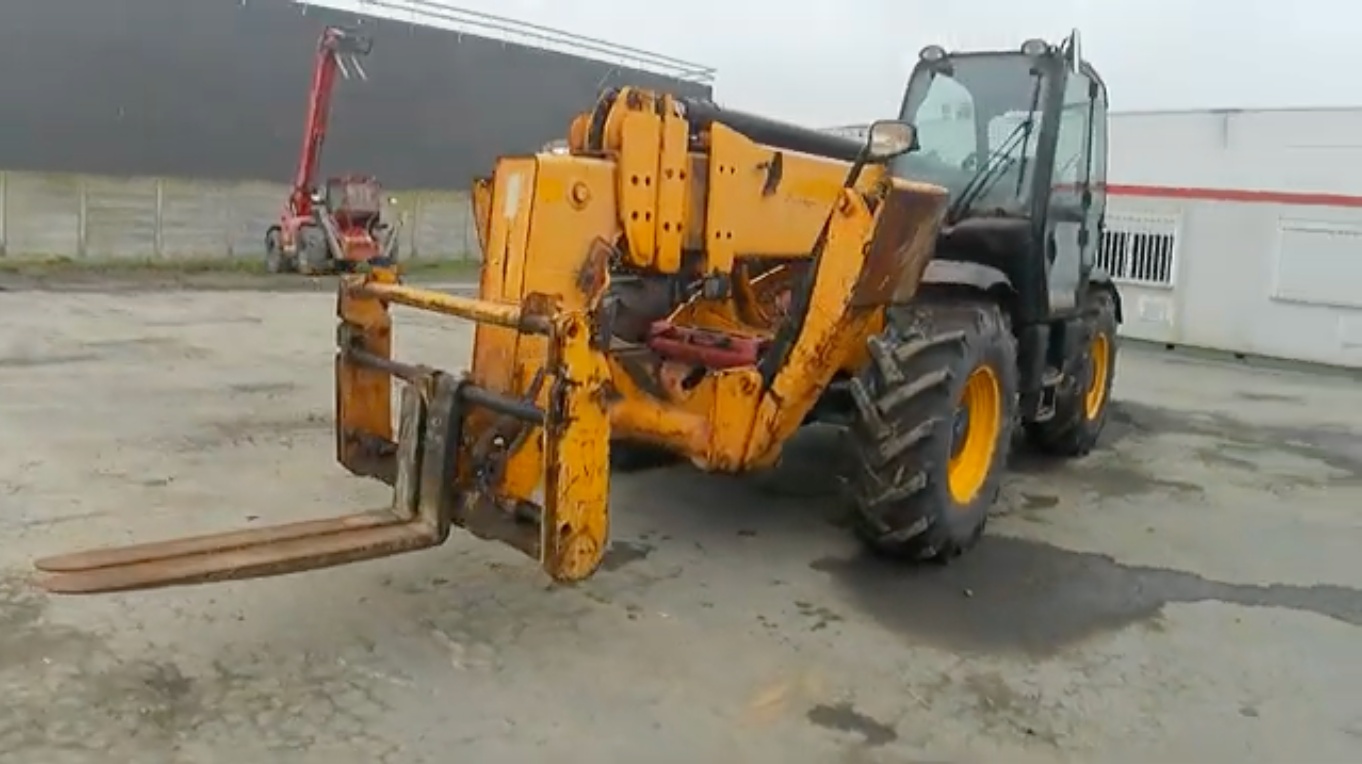

2009 JCB 540-170 17.5M TELEHANDLER

2009 JCB 540-170 Telehandler Specs

Dimensions:

Maximum Lift Height: 17.5 m

Maximum Forward Reach: Approx. 12.5 m

Overall Height: 2.69 m

Overall Width: 2.44 m

Overall Length to Front Carriage: 6.27 m

Ground Clearance: 400 mm

Wheelbase: 2.74 m

Lifting Performance:

Max Lift Capacity: 4,000 kg

Lift Capacity at Full Height: Approx. 2,500 kg

Lift Capacity at Max Reach: Approx. 500 kg

Engine:

Engine Model: JCB Dieselmax

Power Output: 100 hp

Fuel Type: Diesel

Displacement: 4.4 litres

Transmission:

Type: Powershift

Gears: 4 forward / 4 reverse

Hydraulics:

Pump Type: Gear pump

Flow Rate: Approx. 110 L/min

Pressure: Up to 250 bar

Other Features:

Side-mounted engine for easy maintenance

Frame levelling

Auxiliary hydraulic lines for attachments

ROPS/FOPS compliant cab

Operating Weight: 11,400 kg
